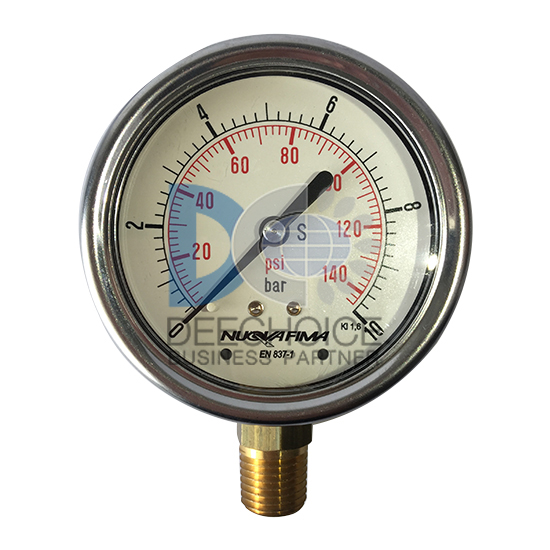

Low Pressure Gauge
| Brand: | Nouvafima |
| Model: | Pressure Gauge 0-360 psi, 0-300 psi, 0-60 psi |
| 0-10 Bar (145 psi), 1.25 Bar (36psi), 0.1 Bar (14.5 psi) | |
| Spec สินค้า: | เกจวัดแรงดันแก๊ส |
| Body: | DIAL 63MM (2.5") |
| Connection: | 1/4" |
| Design: | EN837-1 |
| Safety designation: | S2 as per EN 837-1 |
| Ranges: | from 0...15 to 0...10000 psi (from 0...1 to 0...600 |
| bar or other equivalent units) | |
| Accuracy class: | 1, 6 as per EN 837-1 |
| Ambient temperature: | -13...+149°F (-25...+65 °C) |
| Process fluid temperature: | +212°F ( max +100 °C) |
| Thermal drift: | max ±0,4 %/10 °C of ranges (starting from + 68 °F - 20 °C) |
| Working pressure: | 75% of FSV for static pressure; 66% of FSV for |
| pulsating pressure. Over pressure limit (15 min max): | |
| 25% of FSV for pressure ranges ≤ 1500 psi (100 bar); | |
| 15% of FSV for pressure ranges over 1500 psi (100 bar) | |
| Protection degree: | IP 67 as per EN 60529/IEC 529 |
| Socket material: | copper alloy. Bourdon tube: copper alloy. |
| stainles steel. | |
| Ring: | stainless steel, polished, crimped |
| Window: | polycarbonate |
| Movement: | copper and stainless steel. |
| Dial: plastic, white with black markings Pointer: not adjustable, aluminium, black |
|
| Saitabie Gas: | LPG, CNG, LNG |
| Origin: |
Europe |
| Data Sheet: | Information |
