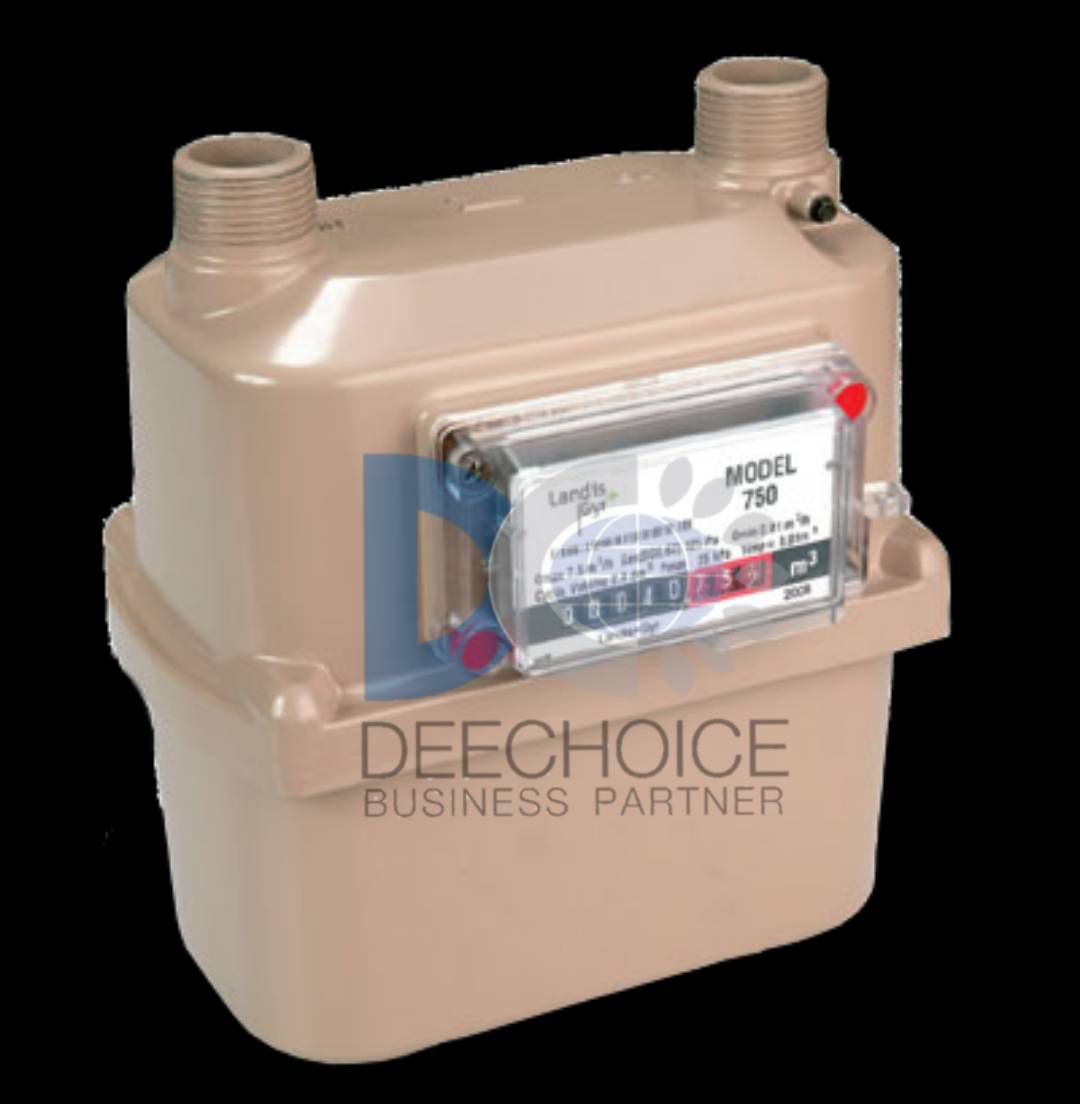

Diaphragm Type
Brand: Ampy
Model: Landis 750
Body: Zinc
Connection: 3/4"
Gasses: Natural gas,town gas, propane,butane,LPG and
inert gases.For other gases please consult
Landis+Gyr.
Temperature Range: -10 ·c to +65 ·c
Cyclic volume: 0.002 Cubic metres (2 litres)
Working Pressure: Refer to meter index badge
Index Drive: Magnetically driven index ensuring low
mechanical wear.
Index: anti-fog hydrophilic coated 8 digit index 5
whole cubic meters (white numbers on
black wheels) and 3 decimal places (white
numbers red wheels).
Thrads: meter boss threads vertical iniet/outlet 10 light
1" to BS746 1987 at 152mm (6") centres. 1" 10
LT.to3/4" BSP Cap Nut and Liner set available
part number SK5
Case Construction: Pressure die cast aluminium.The Model 750
meter weighs 2.75 kg
Puls Output Ready: All meters are fitted with a magnet in the far
right indix wheel and hence each meter is
pulse retro fittable in field 1 pulse / 10 lts.
Corrosion Protection: Alodine internal and external pretreaent of
castings followed by baked polyester powder
coat for maximum corrosion protection.
Pulse Output Module: 10 litres per pulse using IN-Z61 or IN-Z62 pulse
module.
Origin: Australia 100%
Data Sheet: Information

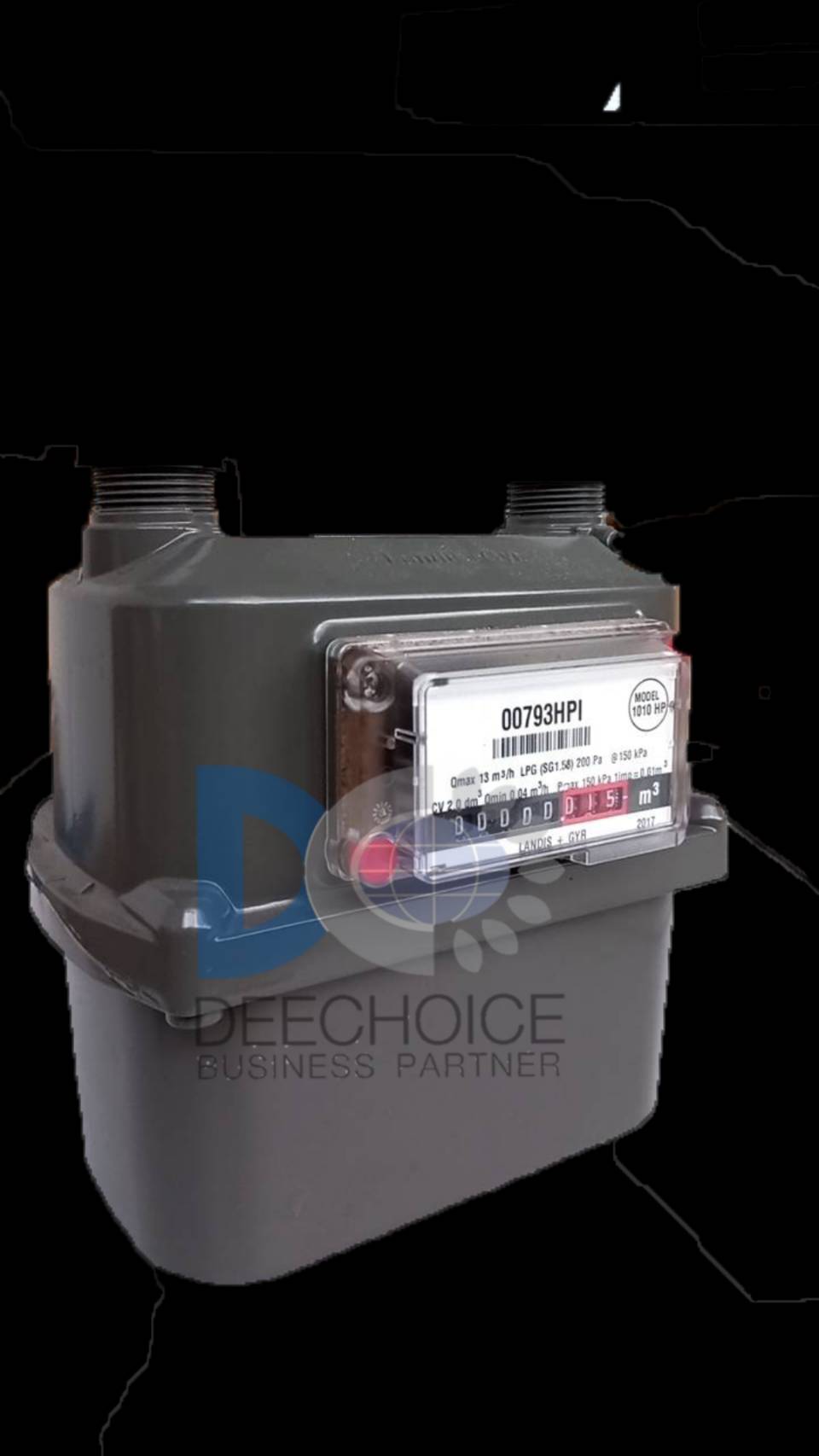

Diaphragm Type
Brand: LANDIS & GYR
Model: Landis 1010
Body: Zinc
Connection: 1"
Gasses: Natural gas,town gas, propane,butane,LPG
and inert gases.For other gases please consult
Landis+Gyr.
Max Inlet pressure: 1.5Bar (1.5kg/cm^2)=21.7PSI=150kPa
ตารางเปรียบเทียบหน่วย
-10'C/+ 60'C, CE0085, EX II 2G c IIC, T4
Flow capacity: Qmax 10 m³/hr.
Origin: Australia 100%
Data Sheet: Information

Diaphragm Type
Brand: Elster
Model: BK-G4
Body: Zinc
Connection: 3/4"
Desing Criteria: Manufactured according to EN 1359 Maximum
pressure : 0,5 bar Fireproof up to 0,1 bar
Quality: Due to the reduced speed of the slides,
Qmin is stable and the meter is not susceptible to contamination.
Main features: Synthetic Diaphragm
High stability of the E% of measurement
MID approvrd 2004/22/CE -B+D modules
Conform to EN 1359;OIML,R6/89,R31/95
Flow rate from:
G2.5:0,025 m³/h to 6 m³/h
G4:0,04 m³/h to 6 m³/h
Cyclic volume: 1, 2m³/h
Temperature range: -25·c + 55·c
LOW pressure loss
Transmission: mecchanical or magnetic
Origin: Europe
Data Sheet: Information
